Interactive Simulation

This tutorial shows how to set up and run an interactive aircraft simulation. You will be able to control it through the built-in GUI and, optionally, use the free X-Plane 12 demo for 3D visualization.

Setting Up X-Plane 12

Download, install and run the X-Plane 12 demo. If you happen to have the full version, you can use it instead. Since we will be using X-Plane simply as an external visualization tool, we only need to set up a few things; for further help, check out the X-Plane 12 manual.

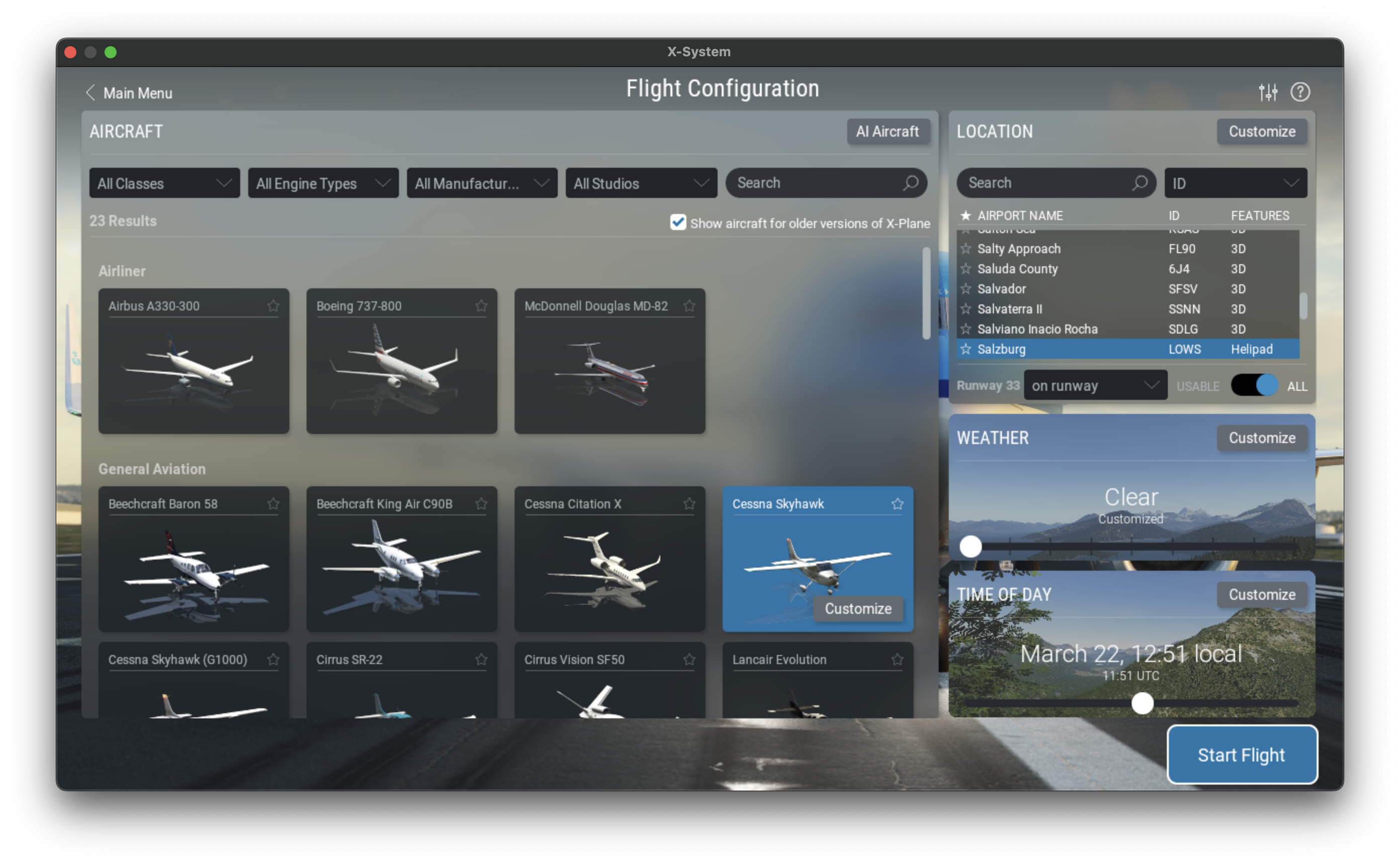

From the main menu, click on New Flight. Select the Cessna Skyhawk as your aircraft and Salzburg (LOWS) as your initial location. Start the flight.

To switch to an external camera, press Shift+4. Right click and drag to rotate the view and use the mouse wheel to zoom in and out. To return to the cockpit camera, press Shift+0.

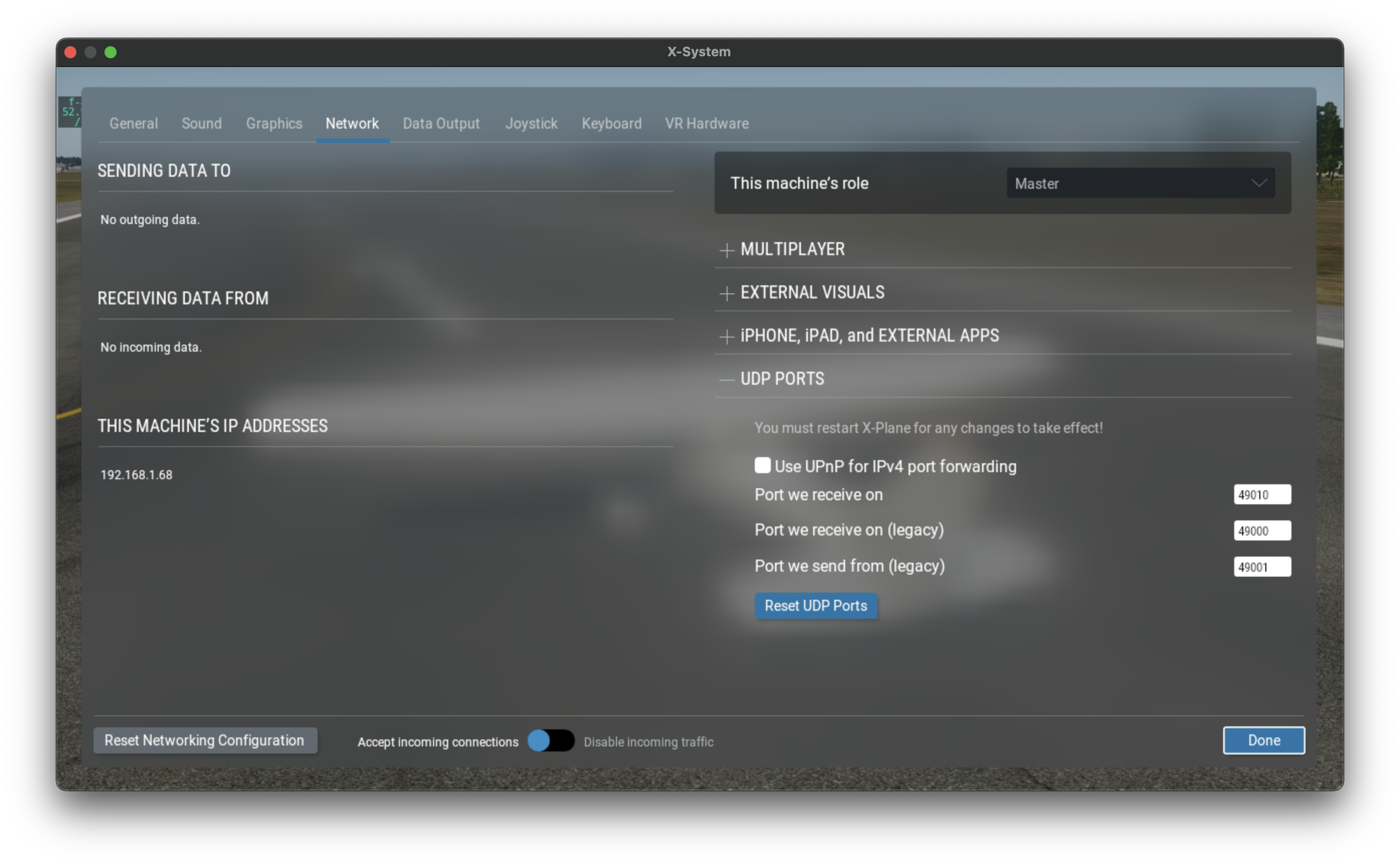

Move the mouse to the top of the screen to bring up the menu bar. Click on the Settings icon and go the Network tab. Make sure Accept incoming connections is enabled. Then, under the UDP Ports section, check the Port we receive on (legacy) value. The default is 49000, but you can use a different one if you need to. Finally, if you are running X-Plane on a different machine than your Julia session, note its IP address.

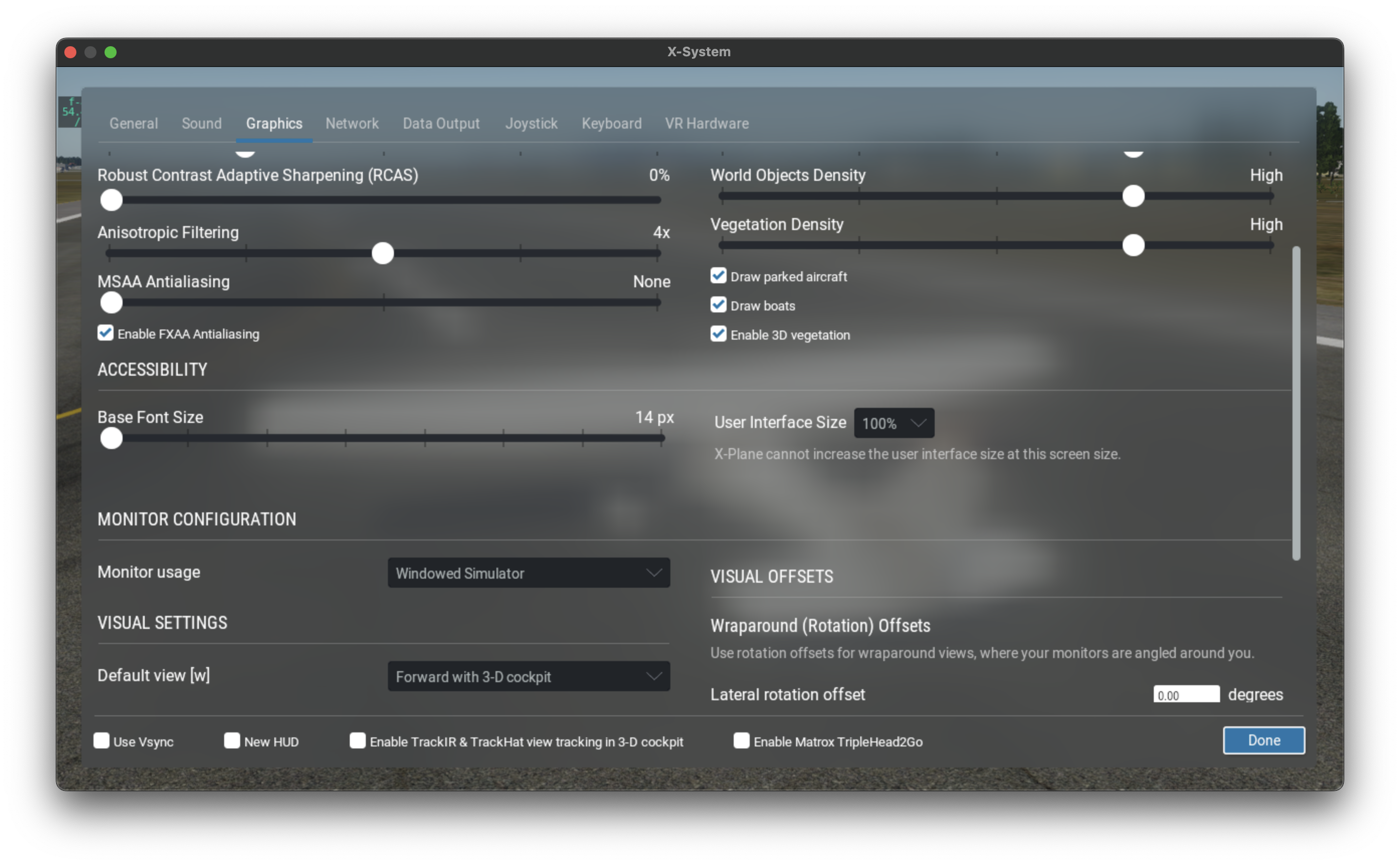

Now go to the Graphics tab. Unless you have a multi-monitor setup, you will probably want to run X-Plane in windowed mode. This will allow you to keep it on screen along with the Flight.jl built-in GUI. To enable windowed mode, select Windowed Simulator in the Monitor usage drop-down.

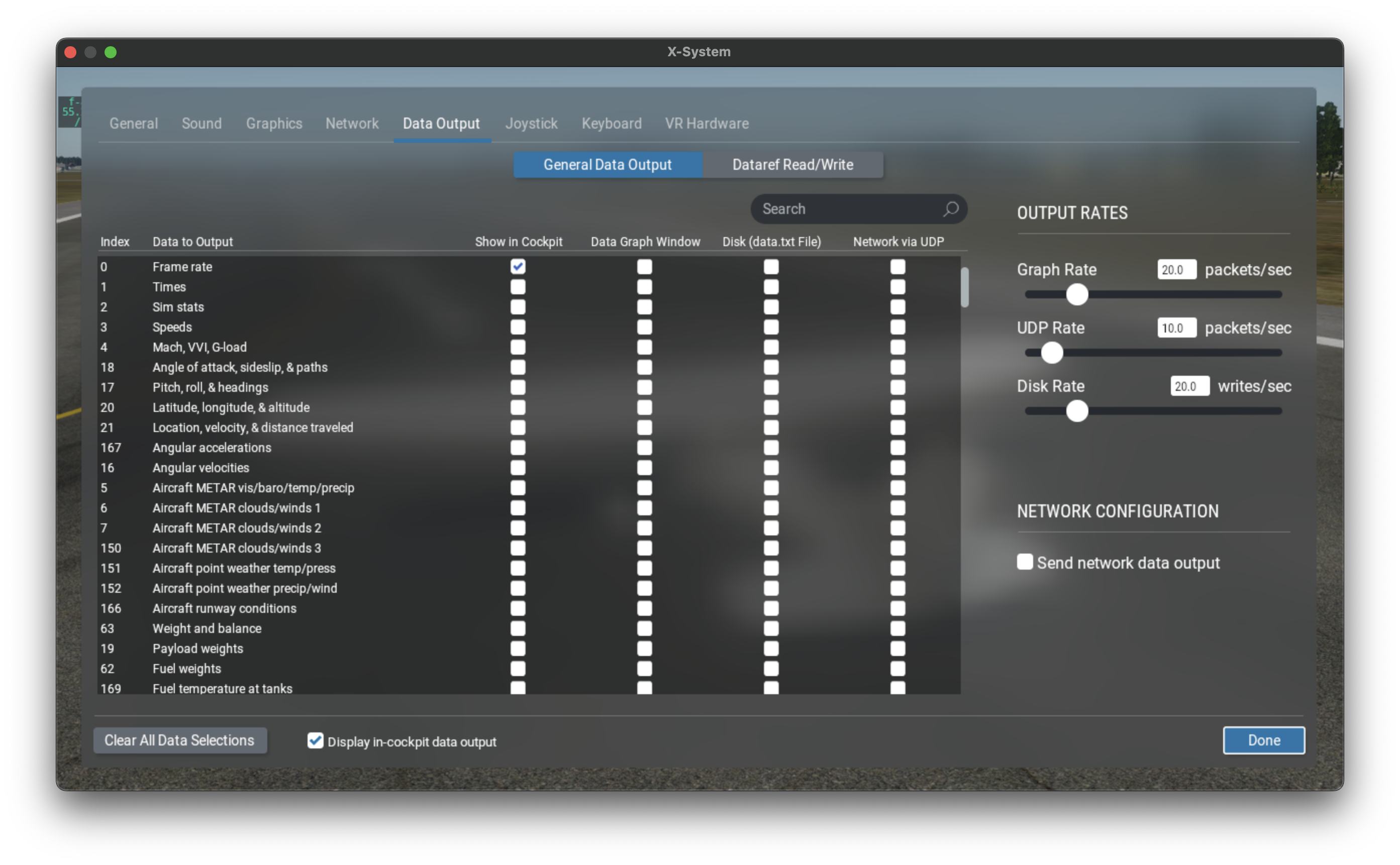

You might also want to experiment with the quality settings until you achieve a comfortable framerate. To display the framerate on screen, go to the Data Output tab, find the Framerate entry in the table and enable the Show in cockpit option.

This concludes our X-Plane setup, now let's move on to Julia.

Setting Up the Flight.jl Simulation

Let's begin by initializing the package:

using Flight

Next, we need to define a 2D location and orthometric elevation for the beginning of Salzburg airport's runway 15, as well as the runway's geographic heading:

loc_LOWS15 = LatLon(ϕ = deg2rad(47.80433), λ = deg2rad(12.997))
h_LOWS15 = HOrth(427.2)
ψ_LOWS15 = deg2rad(157)

Our simulated world will consist of an aircraft, an atmospheric model and a terrain model:

aircraft = Cessna172Xv1()
atmosphere = SimpleAtmosphere()
terrain = HorizontalTerrain(h_LOWS15)
world = SimpleWorld(aircraft, atmosphere, terrain)

The Cessna172Xv1 aircraft is a hypothetical customization of a Cessna 172S. It replaces the reversible actuation system on the base model with a digital fly-by-wire flight control system, which we will leverage in this example. Note that this aircraft does not aim to replicate the internals or interface of any specific real-world autopilot. Its purpose is simply to illustrate how the Flight.jl framework may be used to design, implement and test complex control architectures. SimpleAtmosphere provides a basic, ISA-based atmospheric model with customizable sea-level conditions and wind velocity. HorizontalTerrain represents a terrain model with constant orthometric elevation, which we have set to our previous value for the beginning of runway 15.

We can now create our simulation:

sim = Simulation(world; dt = 0.01) #specifies a suitable integration step size

Under the hood, this call turns our SimpleWorld instance into a Model object, which is what the Simulation will actually interact with. The Model type is central to the Flight.jl framework, and we will look into it further in future examples.

Next, we instantiate an X-Plane 12 control interface and attach it to the simulation. This will allow the simulation to disable X-Plane's physics engine and periodically send our aircraft's state for X-Plane to display:

xp = XPlane12Control()
Sim.attach!(sim, xp)

using Sockets #bring IPv4 into scope
xp = XPlane12Control(address = IPv4("192.168.1.2"), port = 49001)

Flight.jl provides basic joystick support via SDL2_jll. Currently, Thrustmaster's T.16000M is the only implemented model. Adding support for other joysticks should be relatively straightforward, but we will not get into it here. If you happen to have a T.16000M available, you can plug it in now and do the following:

for joystick in update_connected_joysticks()
    isa(joystick, Joysticks.T16000M) && Sim.attach!(sim, joystick)
end

Otherwise, don't worry; in this example, we will let the SAS and autopilot modes handle most of the flying for us. This will make it relatively easy to control the aircraft through the GUI.

The last step is to define a suitable initial condition. For on-ground initialization, we can do that by specifying the aircraft's frame kinematic state:

init_gnd = KinInit(;
    location = loc_LOWS15, #2D location
    h = h_LOWS15 + C172.Δh_to_gnd, #altitude, as an offset with respect to terrain elevation
    q_nb = REuler(ψ_LOWS15, 0, 0), #attitude with respect to NED frame, as Euler angles
    ω_wb_b = zeros(3), #angular velocity with respect to local tangent frame, aircraft frame coordinates
    v_eb_n = zeros(3), #Earth-relative velocity, NED frame coordinates
    ) |> C172.Init

Then, we assign it as:

Sim.init!(sim, init_gnd)

Running the Simulation

Now we can finally start the simulation:

Sim.run_interactive!(sim)

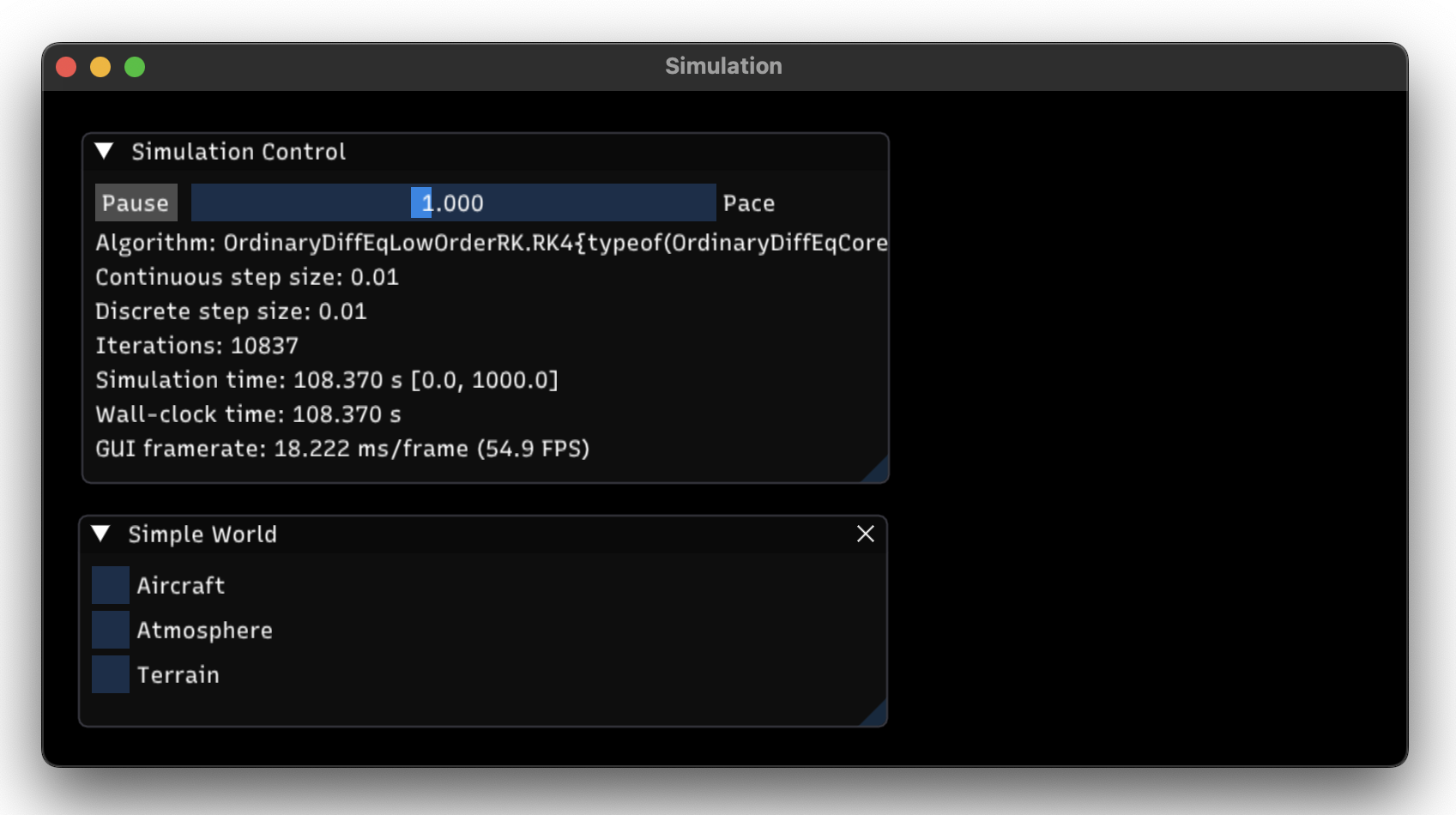

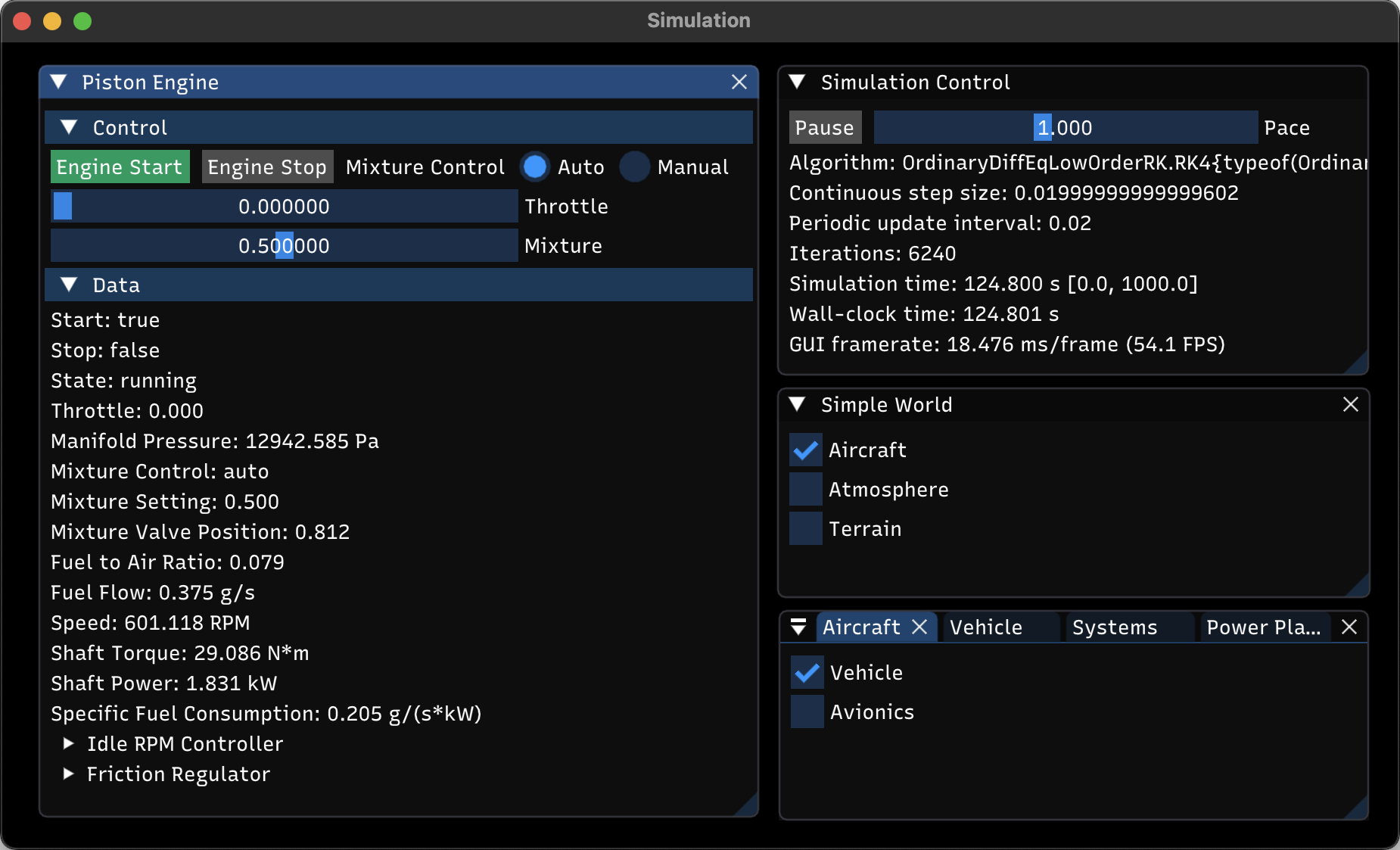

After a few seconds, the simulation will launch, and a new OS window containing the built-in GUI will open:

The Simulation Control panel lets you pause or resume the simulation, and set its pace relative to wall clock time. To abort the simulation, simply close the GUI window.

The other panel is specific to our simulated Model. A complex Model like ours comprises a hierarchy of components. Each component is itself a Model, and it typically defines its own GUI panel, which can be accessed from that of its parent. Feel free to explore the GUI to get a picture of the underlying component hierarchy and discover different ways of interacting with the simulation.

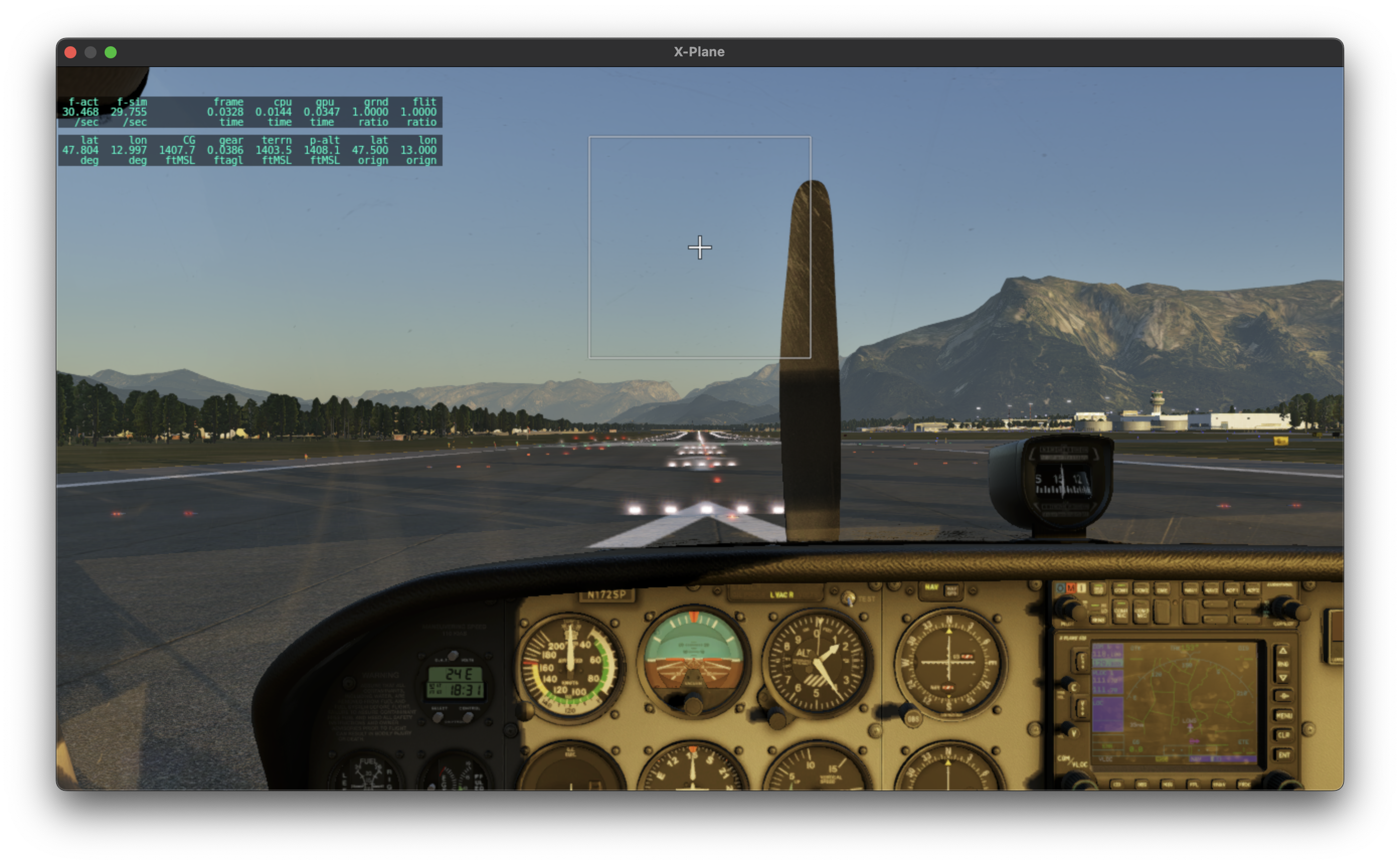

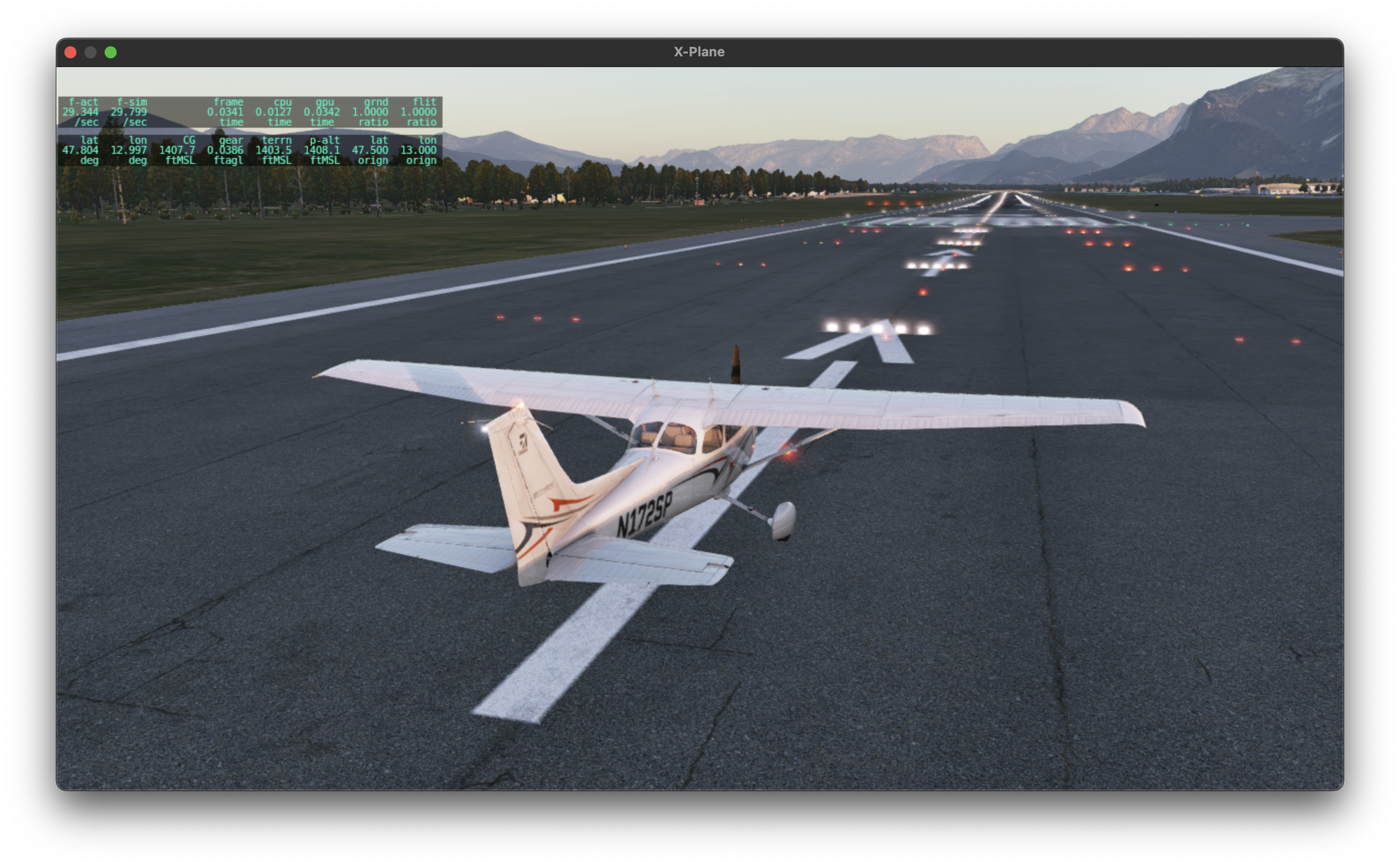

Let's get back to X-Plane for a moment. You should now see the aircraft sitting on the runway with the engine stopped. This indicates that the X-Plane interface was set up properly and our simulation has taken control of the visuals.

Sim.init!(sim, init_gnd)
Sim.run_interactive!(sim)

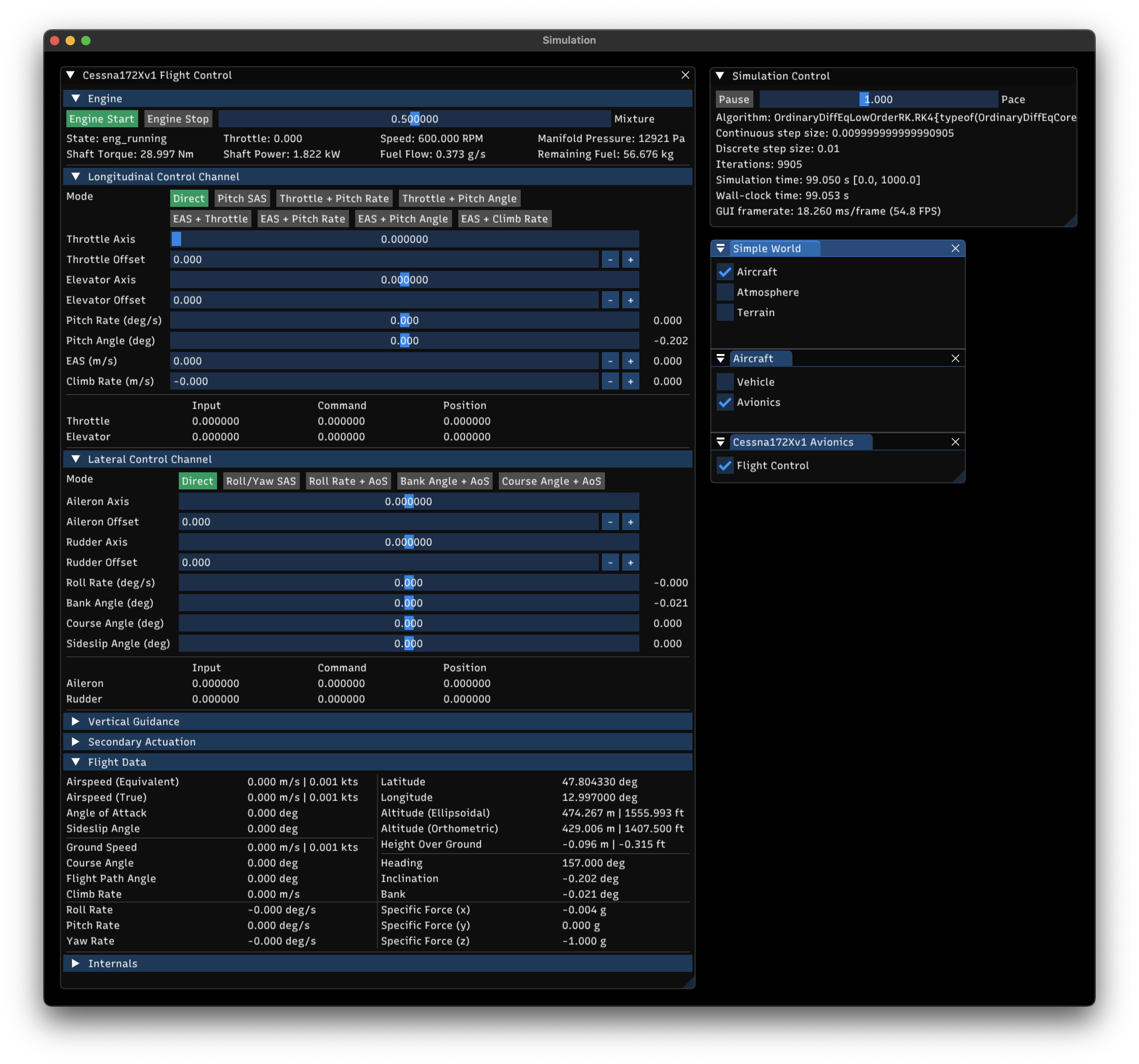

Now return to the GUI and navigate to Aircraft > Avionics > Flight Control. This panel contains all the flight control inputs and instrumentation for the Cessna172Xv1 model.

First, locate the Engine Start button under the Engine section. Press and hold it for a couple of seconds to start the engine.

Next, expand the Longitudinal Control Channel and Lateral Control Channel sections. The first one computes throttle and elevator commands. The second one computes aileron and rudder commands. Both are initialized in Direct mode, wherein each actuator command is set directly to the sum of its corresponding Axis and Offset values. With Direct mode active on both channels, you are essentially flying the base Cessna 172S model, except for the additional actuator dynamics.

Try moving the control surfaces using the Axis and Offset inputs, and observe the result on the GUI's numerical displays or an external X-Plane camera. When you are done, reset all values back to zero.

Under Longitudinal Control, select the Pitch SAS mode. In this mode, direct throttle control is preserved, but elevator inputs are fed to a pitch compensator, which computes the actual elevator actuator commands. The pitch compensator modifies the natural short-period and phugoid modes, providing a smoother, more stable pitch response. When clicked, the button will turn amber, indicating the mode is now on standby; it will engage automatically upon lift off.

Under Lateral Control, select the Roll/Yaw SAS mode. In this mode, both aileron and rudder inputs are fed to a lateral compensator, which simultaneously computes aileron and rudder actuator commands. This improves the aircraft's Dutch roll response and stabilizes its naturally unstable spiral mode.

Currently, the GUI does not have a graphical instrument panel. Instead, the Flight Data section provides readouts for all essential variables. This will be particularly useful if you're running this example without X-Plane.

That is all we really need to set up for take off. We won't bother with flap settings, rotation or even keeping the aircraft centered on the runway (which, as far as our simulation is concerned, doesn't really exist!). When you're ready, just set the Throttle Axis all the way to 1 and let the aircraft accelerate and lift off on its own.

Once airborne, you will see the previously selected SAS modes turn from amber to green. Let the aircraft climb for a while to give yourself some clearance. Then, spend some time flying with the SAS modes enabled. When you feel comfortable with the controls, try switching back and forth between the Direct and Pitch SAS modes, and compare the aircraft's response to elevator input. You can do the same with the Direct and Roll/Yaw SAS modes to compare aileron and rudder responses, but mind the spiral mode instability!

Sim.init!(sim, init_gnd)
Sim.run_interactive!(sim)

Next, try the EAS + Pitch Rate mode. This mode combines an autothrottle loop with a pitch rate loop built on top of the pitch SAS. Activating this mode will disable all Throttle and Elevator inputs and enable the EAS and Pitch Rate commands. The numerical readout to the right of each command slider shows the current value of its target variable. Try changing the EAS command and observe the response. Then, experiment with the Pitch Rate command. While doing so, keep in mind that an arbitrary pitch rate cannot be sustained indefinitely!

When you are done, enable the EAS + Climb Rate mode. Set the EAS command to 50 m/s and the Climb Rate command to zero. This will hold your altitude throughout the next steps.

If you have attempted any turns so far, you may have noticed that the Roll/Yaw SAS mode does not provide automatic turn coordination. For this, you can use one of the higher level lateral modes, all of which track sideslip angle commands. Go ahead and enable the Bank Angle + Sideslip mode. Set the Sideslip Angle command to zero. Then, initiate a turn with the Bank Angle command, and notice how the sideslip angle is indeed held during the turn.

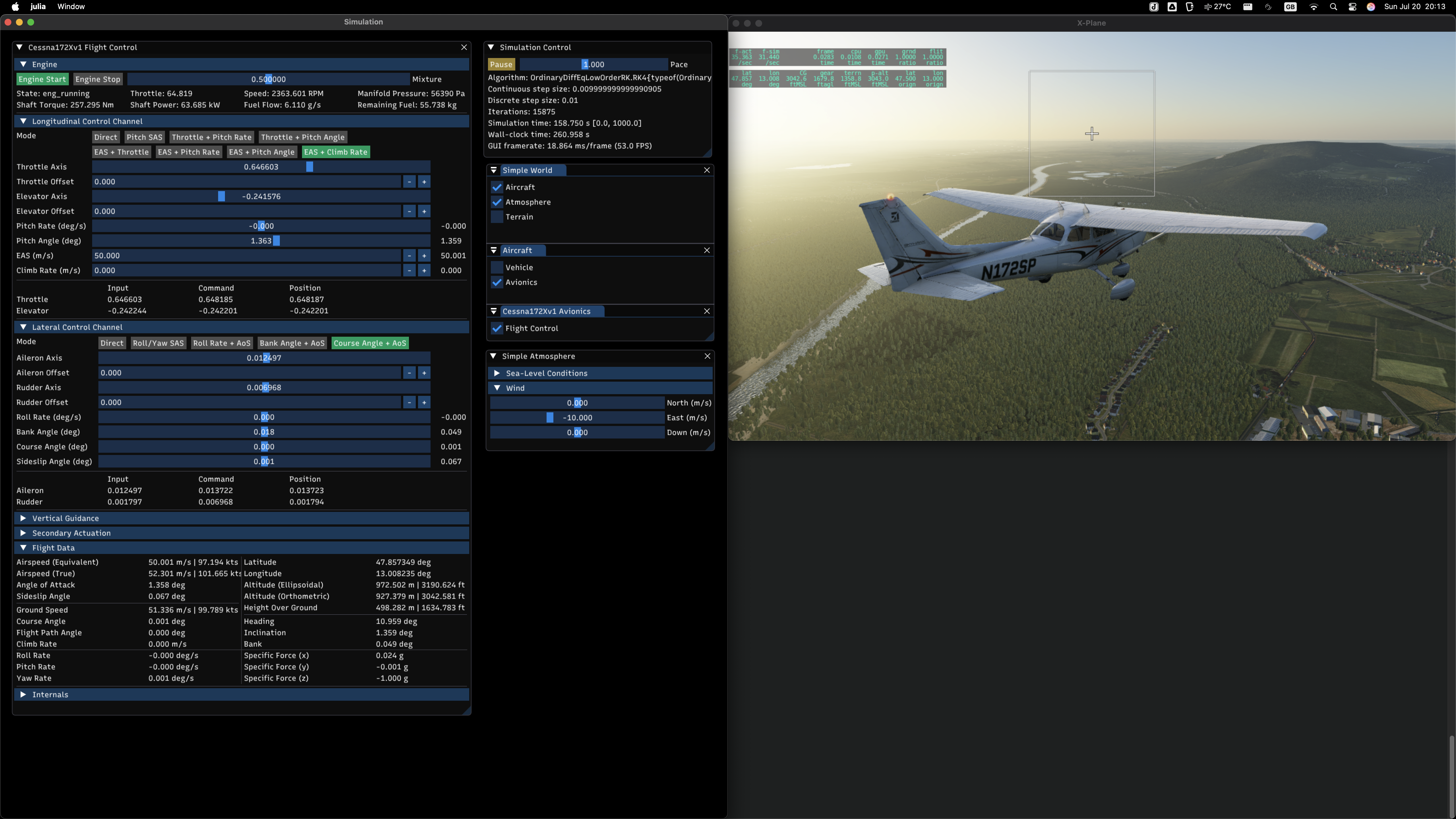

Finally, enable the Course Angle + Sideslip mode. Set the Course Angle to 0 and let the aircraft turn to intercept it. Then, open the Atmosphere > Wind panel. Use the East slider to add some crosswind. Notice how the aircraft turns into the wind, settling on the appropriate heading to maintain the commanded course angle, while also tracking the commanded sideslip angle.

One final hint before wrapping up. If the whole take-off sequence starts getting tedious, you can skip it entirely by using the trim functionality to initialize the aircraft in flight. Here's how to do it:

init_air = C172.TrimParameters(;
    Ob = Geographic(loc_LOWS15, h_LOWS15 + 500), #500 m above runway 15
    EAS = 50.0, #equivalent airspeed (m/s)
    ψ_nb = ψ_LOWS15, #runway heading (rad)
    γ_wb_n = 0.0, #wind-relative flight path angle (rad)
    ψ_wb_dot = 0.0, #turn rate (rad/s)
    flaps = 0.0, #flaps position (0 to 1)
    fuel_load = 0.5, #normalized fuel load (0 to 1)
)
Sim.init!(sim, init_air)

Feel free to explore the remaining control modes and the altitude guidance function on your own. For more information on Cessna172Xv1's flight controller, check out the source code and the design notebooks for the longitudinal and lateral control channels.
